1767780 ₽
Approximate Depth
29.5 inApproximate Height
3.5 inApproximate Weight
47.5 lbsОписание товара

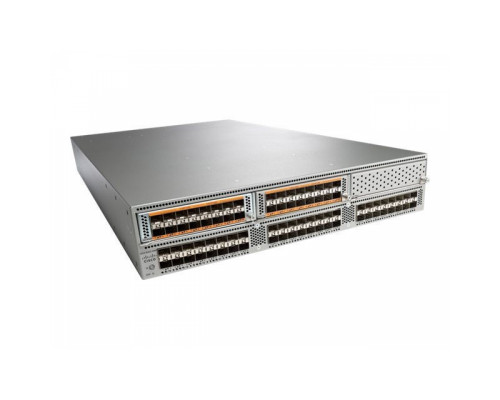

Nexus 5596UP, 48 FC transceiver, 48p storage license
Характеристики
Approximate Depth
29.5 in
Approximate Height
3.5 in
Approximate Weight
47.5 lbs
Approximate Width
17.3 in
Authentication Method
RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, BSMI CNS 13438, GB 4943, FIPS 140-2 Level 1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
Device Type
Switch - 48 ports - managed - with 48x Cisco MDS 9000 Family 2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC (DS-SFP-FC8G-SW)
Enclosure Type
Rack-mountable - 2U
Encryption Algorithm
AES
EOS
05.05.2019
Expansion Slots
3 (total) / 3 (free) x expansion slot
Features
Layer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+)
Humidity Range Operating
5 - 95% (non-condensing)
Installed Qty
2 (installed) / 2 (max)
Interfaces
48 x SFP+ 1 x 1000Base-T - RJ-45 - management 1 x console - management
Jumbo Frame Support
9216
MAC Address Table Size
32K entries
Max Operating Temperature
104
Max Storage Temperature
158
Min Operating Temperature
32
Min Storage Temperature
40
Mounting Kit
Included
Performance
Forwarding performance : 1920 Gbps
Ports
48 x SFP+
Power Device
Internal power supply - hot-plug
Power Provided
1100 Watt
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Remote Management Protocol
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Service & Support
1 year warranty
Service & Support Details
Limited warranty - replacement - 1 year - response time: 10 days
Voltage Required
AC 120/230 V ( 50/60 Hz )
Производитель
Cisco
