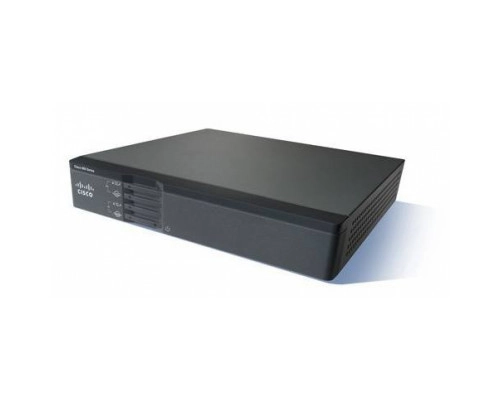

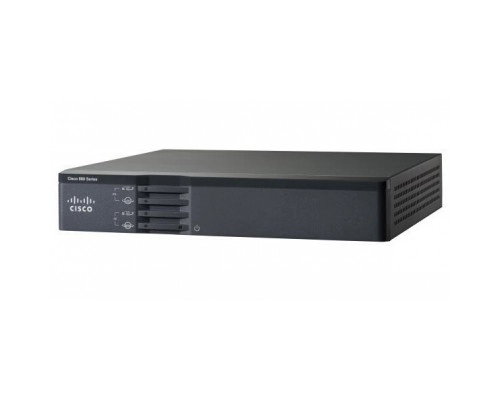

Маршрутизатор Cisco C866VAE-K9

Approvals and compliance

Emissions:47 CFR Part 15: 2006, CISPR22: 2005, EN300386: V1.3.3: 2005, EN55022: 2006, EN61000-3-2: 2000 [Inc amd 1 and 2], EN61000-3-3: 1995 [+ amd 1: 2001], ICES-003 Issue 4: 2004, KN 22: 2005, VCCI: V-3/2006.04 Immunity:CISPR24: 1997 [+ amd 1 and 2], EN55024: 1998 [+ amd 1 and 2], EN61000: 4-3, 4-6, AS/NZS 3548, CFR 47 Part 15 Class B, EN55022 Class B

Cisco IOS Software Image

C860vae2-advseck9-mz

CON/AUX port

A single dual-purpose port that provides direct connection to a console or external modem for management or backup access point

Console or auxiliary port

RJ-45

Default Feature Set

Advanced Security

DRAM

512MB

Embedded management features

NetFlow, IP service-level agreement (IP SLA), Web Services Management Agent

First Cisco IOS Software Release

15.6(3)M

Flash Memory

56 MB

Form-factor

1 RU

Increased performance

Performance that allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, and video services

LAN interfaces

1 GE + 4-port 10-/100-Mbps managed switch

Managed switch with GE and FE LAN ports

Connection of multiple devices within a teleworker home or a small office, with the ability to designate a port as the network edge, VLANs that allow for secure segmentation of network resources

Model

Cisco 866VAE-K9

Multimode DSL (VDSL2 and ADSL2 and 2+)

Broadcom chipset,Dying gasp (Note: Dying Gasp is not assured on Annex M),IEEE 802.1q VLAN tagging VDSL2: ITU G.993.2 (VDSL2),997 and 998 band plans,VDSL2 profiles: 8a, 8b, 8c, 8d, 12a, 12b, and 17a,U0 band support (25–276 kHz),Ethernet PTM mode only based on IEEE 802.3ah 64/65 octet encapsulation,DELT diagnostics mode ADSL2/2+: ADSL over basic telephone service with Annex A and ISDN Annex B ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+),ADSL2+ over basic telephone service Annex M (for extended upstream bandwidth) for G.992.3 (ADSL2) and G.992.5 (ADSL2+) Note: Annex M performance is not optimal over Annex A SKUs. G.994.1 ITU G.hs Handshake Protocol,Reach-extended ADSL2 (G.922.3) Annex L for increased performance on loop lengths greater than 16,000 feet from central office,T1.413 ANSI ADSL DMT issue 2,DSL Forum TR-067 and TR-100 performance compliant,Inpulse Noise Protection (INP) with Extended Framing Parameters,Downstream Power Back Off (DPBO),Fixed Firmware solution for General deployments. No ability to upgrade the Firmware on the 860VAE models (applicable to all non-Wifi models)

Nonoperating altitude

0 to 15,000 ft (0 to 4570m)

Nonoperating humidity

5 to 95% relative humidity (noncondensing)

Nonoperating temperature

-20 to 65°C

Operating altitude

0 to 10,000 ft (0 to 3000m)

Operating humidity

10 to 85% relative humidity (noncondensing)

Operating temperature

At sea level: 0 to 40°C, Up 10,000 ft: 0 to 25°C, Derating 2.7°F/10,000 ft (1.5°C/1000 ft)

Performance with services

10 Mbps

Physical dimensions (H x W x D)

4.45 x 24.1 x 22.9 cm

Power

AC input voltage: 100 to 240 VAC, Frequency: 50 to 60 Hz, Maximum output power: 60W, Output voltages: 12 VDC

QoS features

LLQ, WFQ, Class-Based WFQ (CBWFQ), Policy-Based Routing (PBR), Class-Based QoS MIB, Class of service (CoS)-to-differentiated services code point (DSCP) mapping, Network-Based Application Recognition (NBAR), DiffServ

Real-time clock

A built-in real-time clock that maintains an accurate date and time for applications that require an accurate time stamp, such as logging and digital certificates

Routing and switching

Border Gateway Protocol (BGP), MAC Filtering, Port Security, IPv4 VRF-Lite (Support for 4 VRFs)

Security and quality of service (QoS) with secure routers

IPsec and Easy VPN with 10 tunnels, BGP, MAC filtering and port security, QoS features that include LLQ and WFQ, NBAR and DiffServ

Security features

Ten IPsec tunnels, Easy VPN/IPsec VPN, FlexVPN including Site-Site VPN on 860VAE-W and C860VAE* models, Firewall, Cloud Web Security (Scansafe) Connector

State-of-the-art xDSL

State-of-the-art xDSL features as per the latest ADSL2+/VDSL2 standards, Improved interoperability vs. various DSL access multiplexers (DSLAMs) deployed at worldwide service providers

USB

One USB 2.0, USB port can be used for: USB flash memory 128 MB (MEMUSB-128FT), 256 MB (MEMUSB-256FT), and 1 GB (MEMUSB 1024FT), Cisco IOS Software boot from USB Note: USB 2.0 port cannot be used for connecting external devices or as a console

WAN interfaces

1 GE ADSL2+ basic telephone service/ISDN VDSL2 over ISDN

Weight

2.5 kg

Wireless LAN

802.11n 2.4 GHz FCC- or ETSI-compliant WiFi, Cisco IOS® Software command-line interface (CLI) or web-based configuration with Admin/Guest role-based access

Производитель

Cisco
